LOKS Summit Series

Patent design split lock for hospitality and high-frequency access.

Offline RF proximity Backup mechanical key

Overview

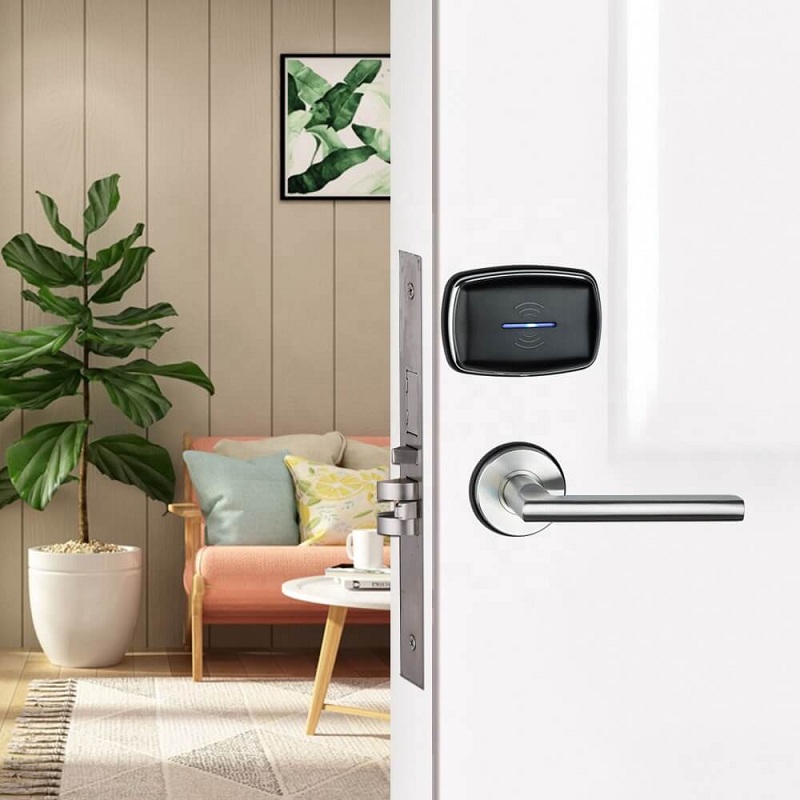

LOKS Summit product overview
  • 304# stainless steel reader, handle and collar.
  • Backup mechanical key (brass + ABS).
  • Proximity RF technology, fast and stable.
  • Die-casting stainless steel latch and deadbolt.
  • Low power alarm. Guest card can still open the door.
  • User-friendly software, easy to use and manage.

Key specifications

Mechanism304# reader, front/back panel and handle
Unlock methodMifare card or mechanical key
Power supply4×AA alkaline battery (DC 6V)
Static current25 µA
Dynamic current< 150 mA
Working temperature-20 to 45 °C
Working humidity20% to 95%
Door thickness40 to 65 mm
Suggested usageWood door
Download Product Specification Sheet

Opens a print-ready HTML specification sheet formatted for PDF export.

Product imagery

High-resolution product views and installation references for the LOKS Summit.

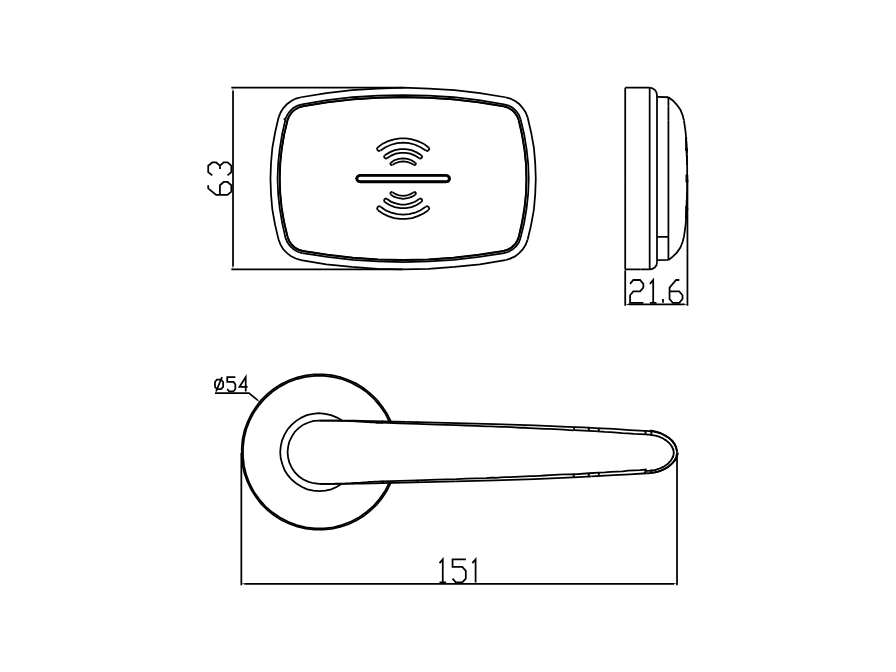

LOKS Summit front view
Product

Front view

Reader, handle, and exterior trim.

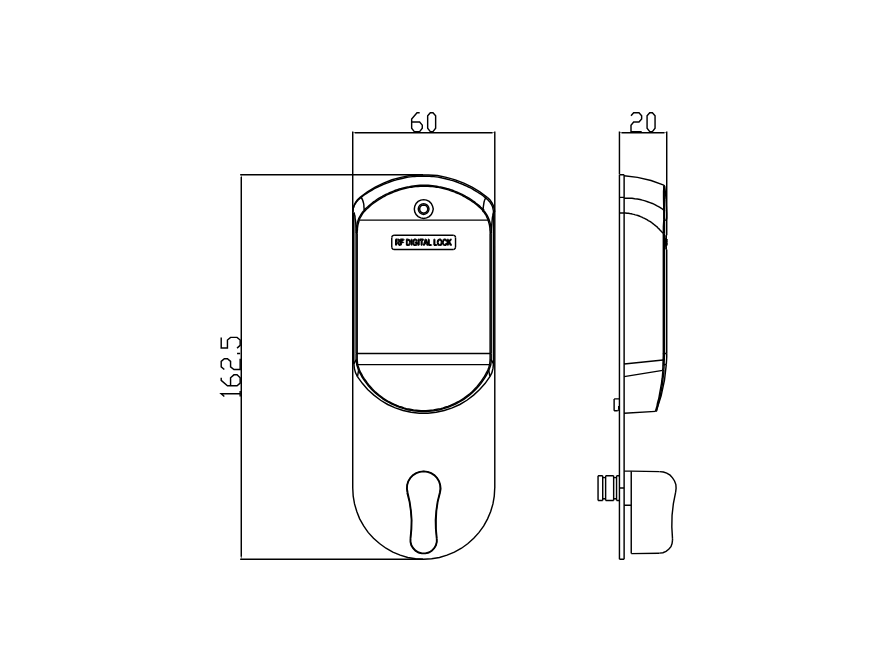

LOKS Summit installed on door
In use

Installed

Typical hospitality installation.

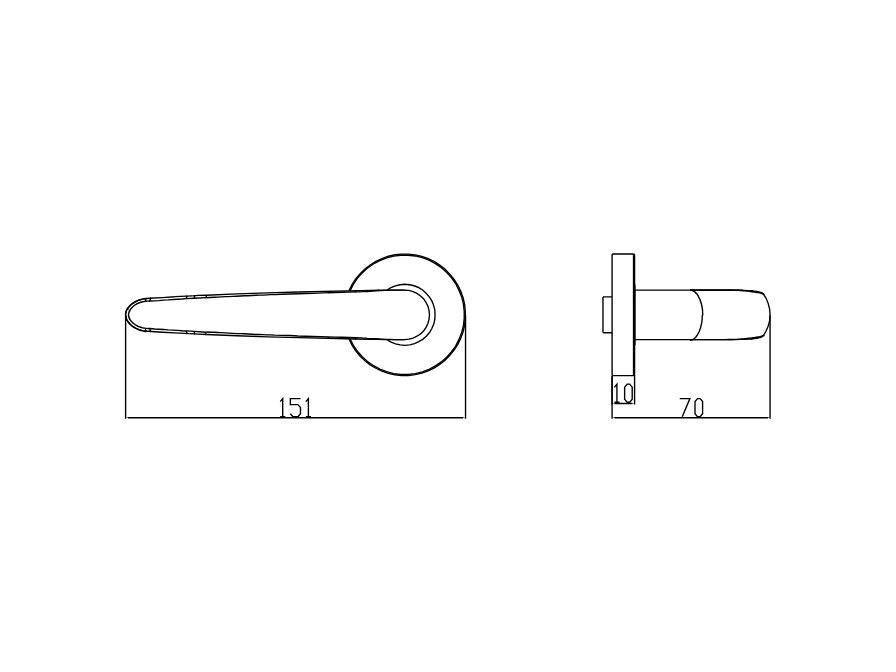

LOKS Summit dimensions and layout
Reference

Dimensions

Clearance and cutout guidance.
